Specification

Specification
Item	1	3	5	7	9	11
Unit weight, g/m2	100	200	300	400	500	800
Weight tolerance, %	-8	-8	-7	-7	-6	-6
Thickness, ≥mm	0.9	1.7	2.4	3.0	3.6	5.0
Break strength, ≥kN/m	2.5	6.5	9.5	12.5	16.0	25.0
CBR burst strength, ≥kN	0.3	0.9	1.5	2.1	2.7	4.0
Tear strength, ≥kN	0.08
Width tolerance, %	-0.5
Break elongation, %	25-100
EOS O90, mm	0.07-0.2

PET Non woven Geotextile Technical Parameters

Unit weight, g/m2	150	200	250	300	350	400	450	500
Weight tolerance, %	-8	-8	-8	-7	-7	-7	-7	-6
Thickness, ≥mm	1.3	1.7	2.1	2.4	2.7	3.0	3.3	3.6
Break strength, ≥KN/m	4.5	6.5	8.0	9.5	11.0	12.5	14.0	16.0
CBR burst strength, ≥KN	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7
Tear strength, ≥KN	0.12	0.16	0.20	0.24	0.28	0.33	0.38	0.42
Width tolerance, %	-0.5
Break elongation, %	25-100
EOS O90, mm	0.07-0.2
Vertical permeability coefficient, cm/s	K×(10-1-10-3) K=1.0-9.9

PP Staple Fiber Needle Punched Non Woven Geotextile Technical Parameter

Unit weight, g/m2	100	150	200	250	300	350	400	450	500
Weight tolerance, %	-8	-8	-8	-6	-6	-6	-6	-5	-5
Thickness, ≥mm	0.9

OBOR, a large and professional geosynthetic products manufacturing company in China with 26 years history. The main products are HDPE Geomembrane, LDPE Geomembrane, LLDPE geomembrane,PVC membrane, Composite geomembrane and HDPE Geocell.

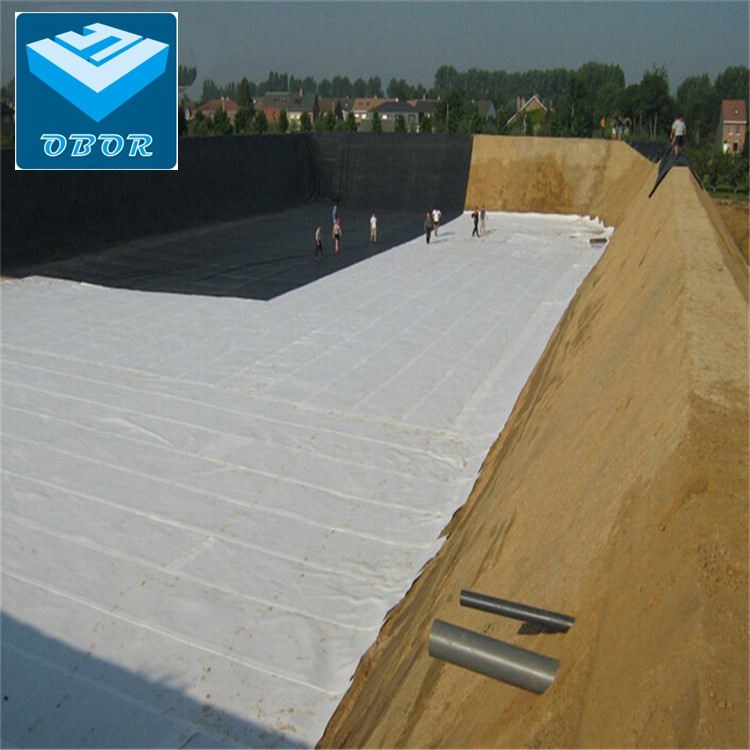

OBOR specialized in providing professional geosynthetics solutions for fish farming, Landfill, Highway, Railway, Airport, Tunnel,Mine Supporting and Protecting, Hydro, Reinforced Steep Slopes, Reinforced Retaining Wall, Reinforced Embankments, water conservancy facilities, soft foundation treatment and other related projects.
