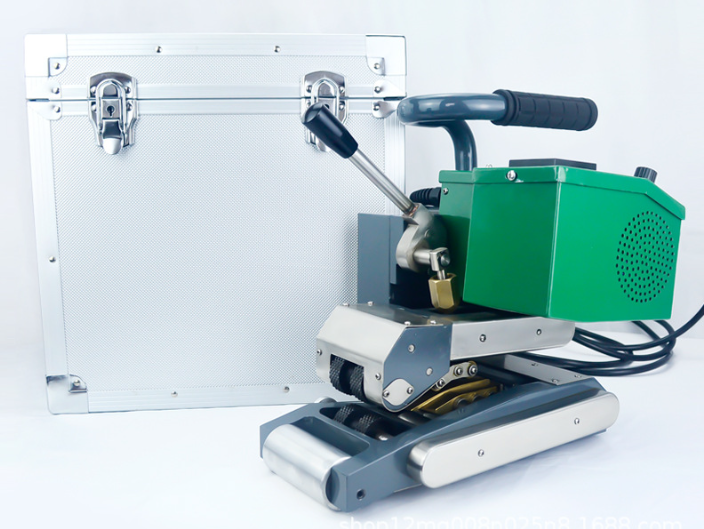

Geomembrane Welding Machine-GW900

Key attributes

Voltage：220V

Frequency:50/60Hz

Power:1800W

Welding speed：0.5~5m/min

The temperature of Heating up：0~450℃

The thickness of welding material：1.0mm~3.0mm

Welding width：15mm×2 Interior Cavity:15mm

Seam strength≥85% base material

Overlap width：12cm

Weight：13kg

Insulation class:class II

The GW900 is a hot wedge welding machine used for welding thermoplastic materials such as HDPE, LDPE, EVA, PVC, ECB and PP.

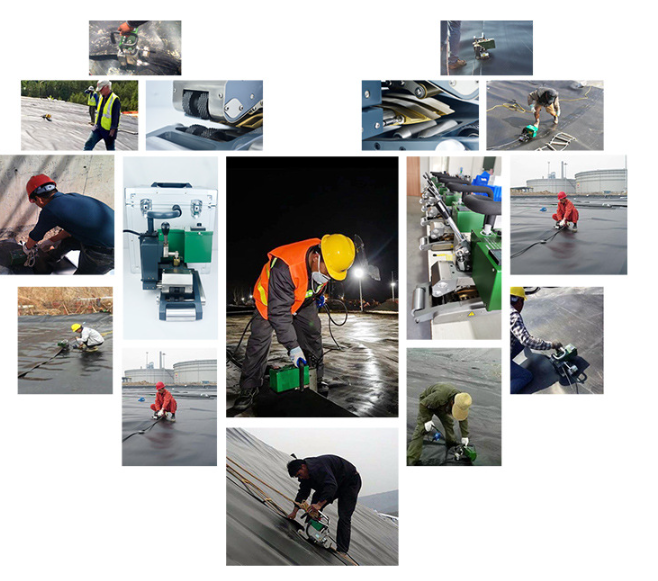

It can be applied in waterproofing projects such as tunnels, subways, water conservancy, agriculture and solid waste treatment.
